Zkteco inBio260
- On-Board Biometric Matching: Performs internal fingerprint template matching directly on the panel via RS-485.
- Reader Support: Connects up to 8 readers (4 RS-485 FR Series and 4 26-bit Wiegand readers).
- High Capacity: Stores 30,000 cardholders, 3,000 fingerprints (expandable to 20,000), and 100,000 transaction events.
- Input/Output Terminals: Equipped with 6 inputs (2 exit, 2 door status, 2 aux) and 4 Form-C relay outputs (2 for locks, 2 for aux).
- Dual Communication: Features built-in TCP/IP and RS-485 networking with auto-discovery tools.
- Built-in Advanced Access: Includes anti-passback, first-card/multi-card opening, duress password entry, and auxiliary linkages.
- Reliable Power & Storage: Preserves data during power loss and continues offline operation if network connection drops.
- Description
- Specifications
Description

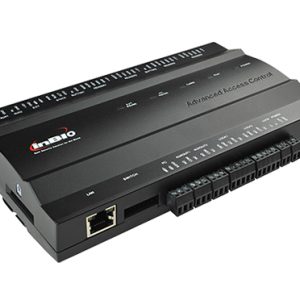

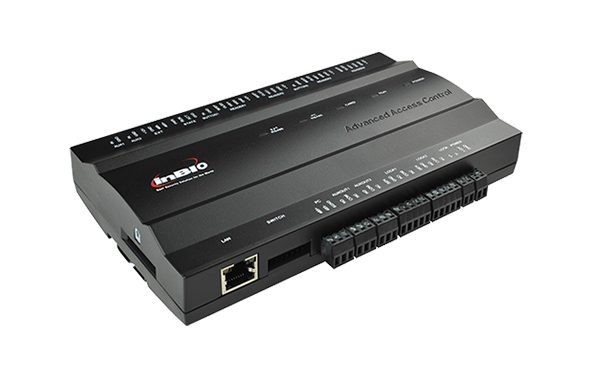

The ZKTeco InBio260 is an IP-based biometric door access control panel designed to manage up to two doors. Powered by a 32-bit 400 MHz CPU with 32 MB RAM and 128 MB Flash memory, it performs internal fingerprint matching directly on the panel for heightened security. The unit supports up to 8 readers total—combining 4 RS-485 FR Series readers and 4 26-bit Wiegand readers—and offers 6 inputs (2 exit devices, 2 door status sensors, and 2 auxiliary inputs) along with 4 outputs featuring 2 Form-C relays for locks and 2 Form-C relays for auxiliary equipment. It retains up to 30,000 cardholders, 3,000 fingerprint templates (expandable to 20,000), and 100,000 event logs. Built-in firmware features include anti-passback, first-card opening, multi-card opening, duress password entry, and auxiliary linkages, alongside flexible network connectivity via TCP/IP and RS-485.
| Number of doors controller | 2 Door |
|---|---|
| Numbers of readers supported | 8 (4 RS-485 Reader 426-bit wiegand teader) |
| Types of readers supported | 26-bit Wiegand and RS485 FR Series Reader |
| Number of Inputs: | 662 Exit Exit Device, 2 Door Status, 2 AUX) |
| Number of Outputs | 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output) |
| Cardholder Capacity | 30,000 |
| Fingerprint Capacity | 3,000 (optional 20,000) |
| Log Events Capacity | 100,000 |
| Communication | TCP/IP and RS-485 |
| Package Dimension | 350(L) * 90(H) * 300(W) * mm |
| Package Weight | 3.6 kg |
| CPU | 32-bit 400 MHz CPU |
| RAM | 32M |
| Flash Memory | 128M |
| Power | 9.6V-14.4V DC |
| Operating Temp | 0-45°C |
| Operating Humidity | 20% to 80% |
