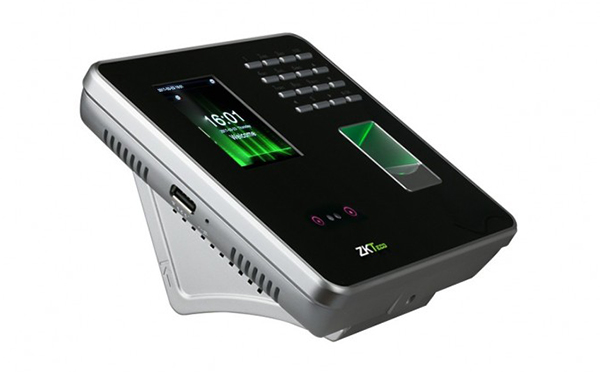

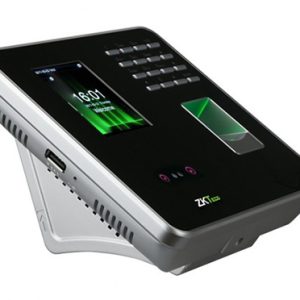

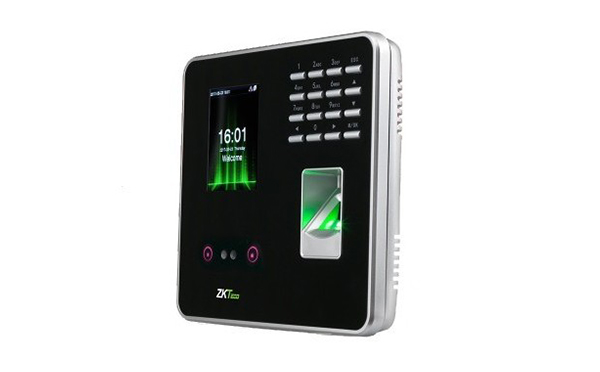

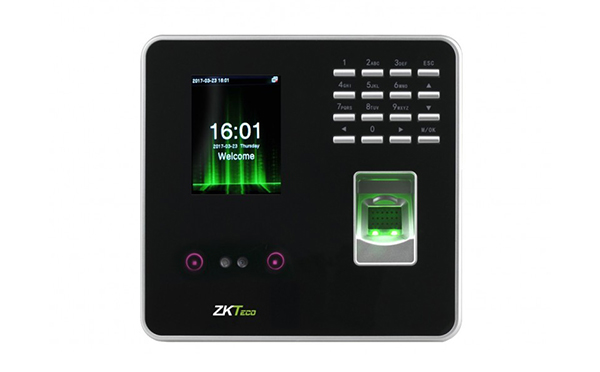

Zkteco MB20
- Fingerprint, face, RFID and password 4 type verification mode
- High-speed identification less than 1 second
- TCP/IP Port for Internet connection
- Access Port available to control one lock and exit button
- Optional 5V 1900mAH UPS, standby up to 3 hours
- Description
- Specifications
Description
The ZKTeco MB20 is a multi-biometric time & attendance and access control terminal supporting four verification modes: fingerprint, face recognition, RFID card (125kHz EM or 13.56MHz MIFARE optional), and password. Featuring high-speed identification in under 1 second, it accommodates up to 1,000 users, 500 fingerprints, 200 face templates, and 50,000 transaction logs. The device includes a 2.8-inch color LCD, TCP/IP and USB host communication ports, a single relay output for door locks, door sensors, and exit buttons, and an optional 5V 1900mAh UPS battery providing up to 3 hours of standby power.
| Biometric | Fingerprint and Face |
|---|---|
| RF Optional | 125kHz EM / 13.56MHz MIFARE |
| Max User | 1,000 |
| Max Fingerprint | 500 |
| Max Face | 200 |
| Max Record | 50,000 |
| LCD | 2.8” Color LCD |
| Sound | Stereo Speaker |
| Operating Humidity | 20% ~ 80% |
| Operating Temperature | 0 °C- 45 °C |
| Power | DC 5V 0.8A |
| Dimensions(W x H x D) | 161.93 x 152.82 x 30.59mm |
| Optional | ID / MF |
