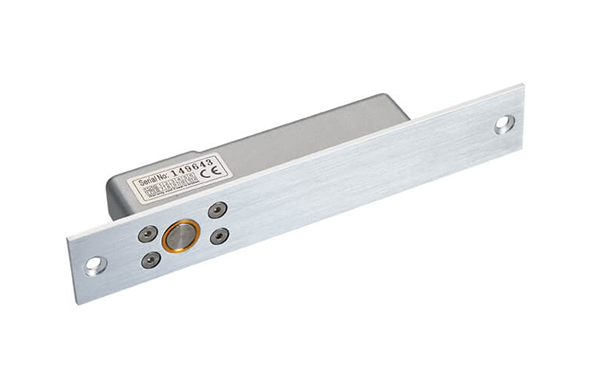

Zkteco LB 12 Electric Mortise Lock
- Electric bolt lock
- Operating Voltage DC10V-DC24V
- Working mode Power-on lock, power-off unlock
- SUS304 stainless steel lock cylinder
- Pure copper coil, continuous operation at ultra-low temperature
- Description
- Specifications
Description
The electric mortise lock is electronically controlled. A mortise lock is a mechanism that sits inside the door. Wiring electricity into the mechanical system uses an electrical impulse from the wiring to stick out a bolt into the door frame to lock the door. When the power is o , the clip will retract, and unlock the door.
| Operating Voltage | DC 10V to 24V |
|---|---|
| Current Starting | 1A ± 10% |
| Current Operating | 110mA ± 10% |
| Wiring | 2 wire (Regardless + or -) |
| Gross Weight | 0.445kg |
| Lock Cylinder | SUS304 Stainless Steel |
| Installation Hole Size (L*W) | 207*36(mm)(The depth of the inner pit is not less than 38mm) |
| Decorative Panel Size (L*W*H) | 215*41*0.7(mm) |
| Lock panel size (L*W*H) | 205*35*3(mm) |
