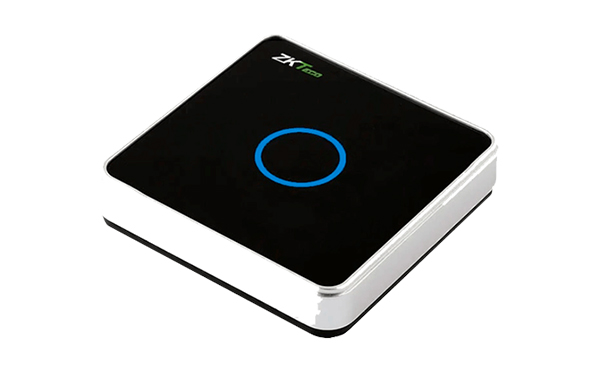

Zkteco UR20RW Series
- Wiegand 26 output (default); Wiegand 26-98 (optional)
- USB power supply
- With antenna, active card search mode
- Data Reception Time: less than 90 ms
- USB data format output
- Description
- Specifications
Description
UR20RW-E and UR20RW-F are ultra-high-frequency, readable, and writable card issuers that can read and write data for the user area and EPC area of UHF tags. The card issuer can read and write the labels and cards that support EPC global UHF Class 1 Gen 2 and ISO 18000-6C standard. Its USB interface adopts the advanced plug-and-play interface without driver core technology to connect computers and other equipment. The card issuer control chip is provided with a watchdog and a voltage detection circuit and has the advantage of stable reading performance.
| Model | UR20RW-E, UR20RW-F |
|---|---|
| Card Supporting | UHF Tags, UHF Cards |
| Working Frequency | 865 MHz-868 MHz, 902 MHz-928 MHz |
| Reading Distance | 0 to 5 cm valid distance |
| Protocol | EPC global UHF Class 1 Gen 2, ISO 18000-6C |
| Communication Interface | USB analog keyboard output |
| Working Voltage | DC 5V (±4%) |
| Working Current | 50 to 300 mA |
| Working Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +60°C |
| Dimension | 107*107*23 mm (±2 mm) |
