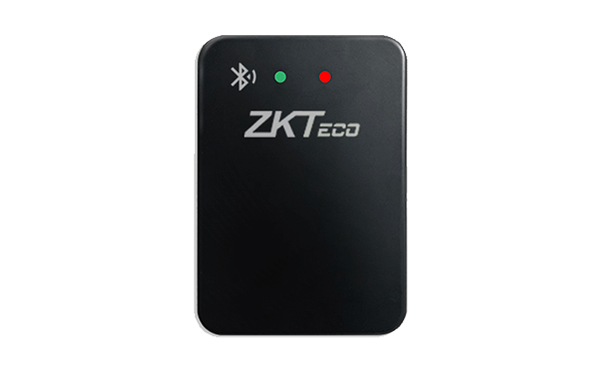

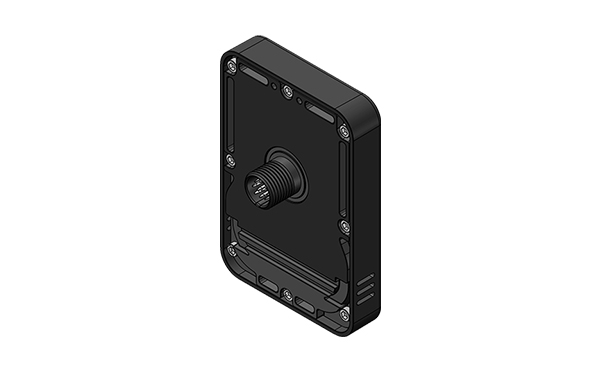

Zkteco VR10 Pro
- Vehicle and pedestrian detection
- Supports Bluetooth communication, allowing upgrade and debugging with a mobile app (Radar Assistant)
- Supports RS485 communication, allowing upgrade and debugging with a PC
- Flexible installation
- Works normally under ambient weather conditions (IP67)
- Detection distance adjustable from 1 m to 6 m
- Supports straight boom
- Description
- Specifications
Description
VR10 Pro is the second generation of ZKTeco radars developed to detect and identify various vehicles (motorcycles, cars, trucks, etc.) and pedestrians near the barrier gate. Through linkage with the main board of the barrier gate, VR10 Pro can help prevent vehicles from smashing into an obstacle or damaging any properties or passers-by while allowing automatic boom closing. Compared to the loop detector, it offers flexible installation and lower labor costs. Also, users could set parameters of VR10 Pro with a mobile app (Radar Assistant) when connected to Bluetooth.
| Model | VR10 |
|---|---|
| Detection Distance | 1m to 6m |
| Working Frequency | 79 GHz |
| Working Voltage | DC 10V to16V |
| Working Current | 0.2A |
| Power Consumption | ≤ 2.5W |
| Transmitter Power Output | 12.5 dBm |
| Antenna Gain | 10dBi |
| Interface | Bluetooth, RS485, Relay |
| Product Dimensions (mm) | 107.5*73.2*18 |
| Package Dimensions (mm) | 166*94*97 |
| Net Weight | 228.4g |
| Working Temperature | -40°C to 85°C |
| Protection Standard | IP67 |
| Supported App | Radar Assistant |
