Zkteco ZK8500R
- Card issue and enroll user fingerprint
- Read Mifare card and ID card number
- High-performance optical fingerprint sensor
- High-quality industrial-class ABS plastic material
- LED indicates the status of the device
- Available SDK for further development
- Description
- Specifications
Description

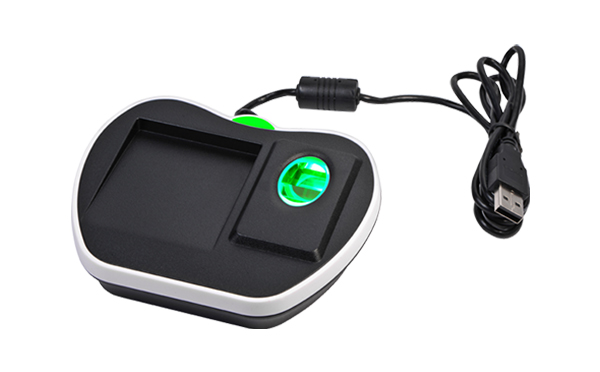

Real-time Image Transmission ZK8500R is a USB fingerprint scanner and card issue device that provides a simple and efficient way to register user fingerprints and card numbers with ZKTeco software. This device can capture a fingerprint image or read a card serial number (ID/Mifare) directly and upload it to the system by USB interface. ZK8500R would save money as it can work as ZK4500+CR10E+CR10M and also can save time, especially when a high volume of users will be using ZKTeco systems on site.
| Model Name | ZK8500R |
|---|---|
| Material | Optical |
| CPU | 120MHz DSP |
| Flash | 16 KB |
| SoC | RTOS |
| Image Quality | 0.3 million pixels, CMOS |
| Operating System | Windows 2000/XP/2003/Vista/7/8 (32/64 bit) |
| Power Voltage | 5V (USB) |
| Power Current | 300 mA |
| Image Size | 280 x 360 pixels |
| Dimension | 124.5 * 102 * 34mm (L*W*H) |
| Operating Environment | -20°C ~ +50°C; 90% r.h. h. |
| Weight | 0.27 kg |
| Image Resolution | 500 dpi |
| Card Reader | 125KHz EM & 13.56MHz Mifare |
