Zkteco ZK-178K
- Visible Light Camera
- UFPA Sensor
- High Image Visibility
- Adjustable Emissivity
- Storage Card
- Predefined Temperature Range
- Thermal Resolution
- High Temperature Alarm
- Type-C USB Port for Charging and Data Transmission
- Flashlight
- PC Software for Image Analysis
- Description
- Specifications
Description

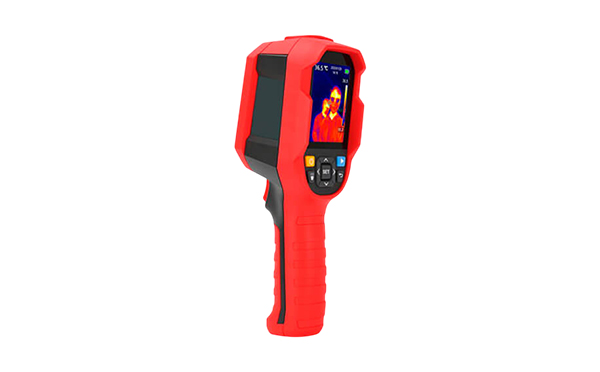

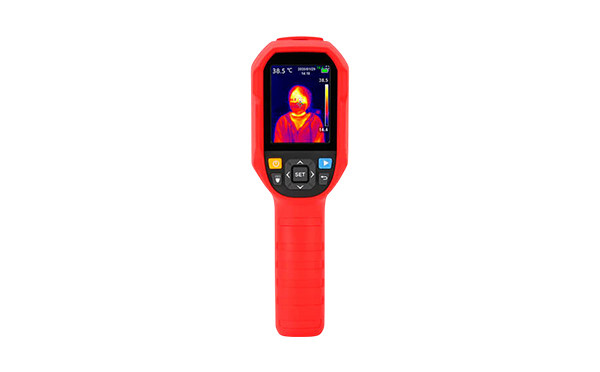

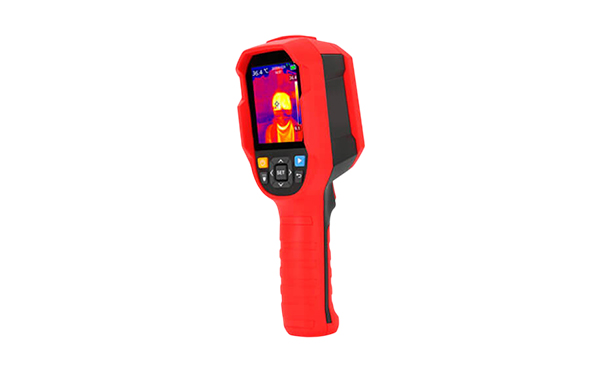

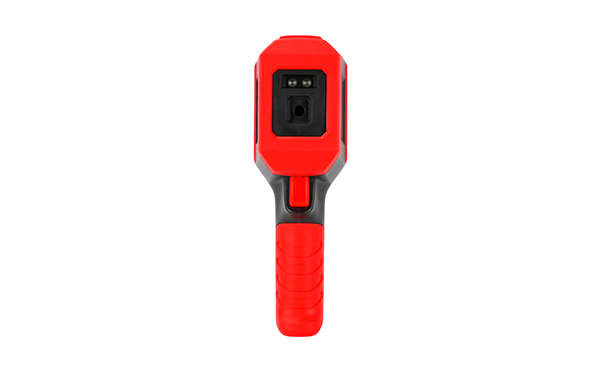

ZK-178K is an infrared thermal imager equipped with a visible light camera that combines surface temperature measurement and real-time thermal image detection. The traditional infrared thermometers can only measure the temperature of each accessory one by one. When compared with the conventional infrared thermometers, ZK-178K can measure the temperature of multiple accessories at once, and the potential threats will be clearly displayed on the screen. It also has a wide range of measurement and photography features that can be adapted in a variety of environments. For example, the built-in high-brightness lamp can easily find a suspicious object in the dark environment. This product also adopts a new generation of the sensor module and multiple color-plate modes to ensure an excellent infrared resolution and improved performance.
| Sensor | Uncooled Focal Plane |
|---|---|
| Temperature Range | 30°C ~ 45°C |
| Resolution | 0.1°C |
| Optimal Measuring Distance | 1m |
| Thermal Resolution | 19200 (160 * 120) |
| Pixel Dimensions | 12μm |
| Thermal Imaging Sensitivity | <50mk |
| Frame Rate | <9Hz |
| Temperature Display | Center temperature measurement and high temperature tracking (default) |
| Image Modes | Thermal camera, visible camera, image blending |
| Visual Camera | Support |
| Display Resolution | 320 * 240 |
| Battery Life | ≥6 hours |
| Charging Time | ≤5 hours |
| Image Storage | Micro SD card |
