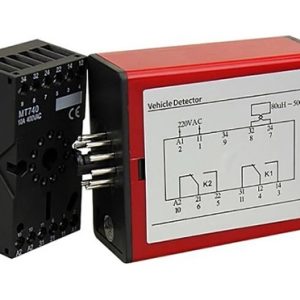

Zkteco PSA-02
- Primary Use: Vehicle detection for parking lots, toll stations, and traffic signals.
- Outputs: Includes two relays to trigger barrier gates or vehicle counters.
- Sensitivity: Adjustable with three settings: Low (L), Medium (M), and High (H).
- Performance: Fast 100 ms response time and operates between 50 kHz and 250 kHz.
- Power: Uses 230VAC (also wired for 110/220V) and consumes only 3W.
- Smart Feature: Runs an automatic 3-second self-test upon startup.
- Description
- Specifications
Description
Intelligent vehicle loop detectors are mainly used for vehicle sensing detection. Suitable for parking lots, road tolls, and traffic signal control. The detector is a single detector, which can only detect one inductor at the same time. It has two relays to provide output signals. The customer can select different output signals to control the barrier gate or calculation. vehicle.
| Power | 230VAC-10% |
|---|---|
| Consumption | ≤3W |
| Working tempt | -20℃-+55℃ |
| Humidity | ≤95% |
| Working frequency | 50 kHz-250 kHz |
| Response time | 100ms |
| Rrlay | 250VAC/3A |
| Inductance value | 10-1000 uH |
| IP level | IP30 |
| Size | 112x73x34 mm |
