Zkteco S922

  • Built-in 7600 mAh backup battery extends extra operation time
  • IP65 rated waterproof and dustproof protection grade
  • Shockproof (0.5 m above the ground) with unique rubber coating
  • Communication: TCP/IP, USB host, Optional: Wi-Fi, 3G (WCDMA) / 4G
  • Multiple authentications: support fingerprint, ID card, or IC card
  • Fingerprint Capacity: 50,000
  • Card Capacity: 50,000

Description

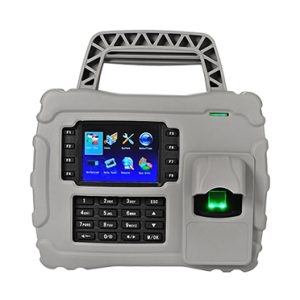

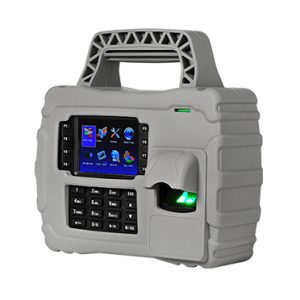

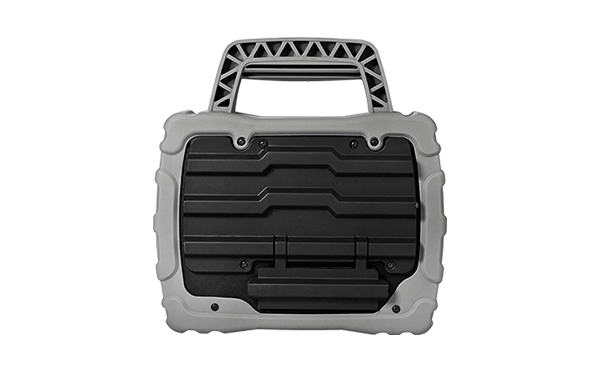

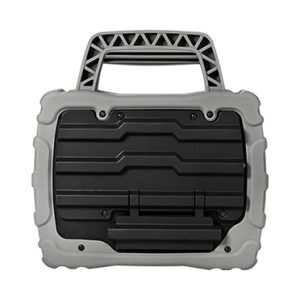

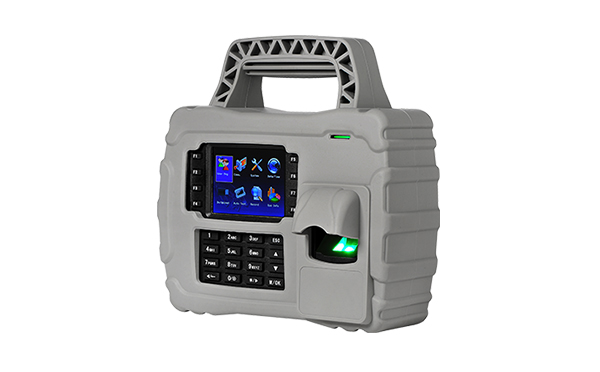

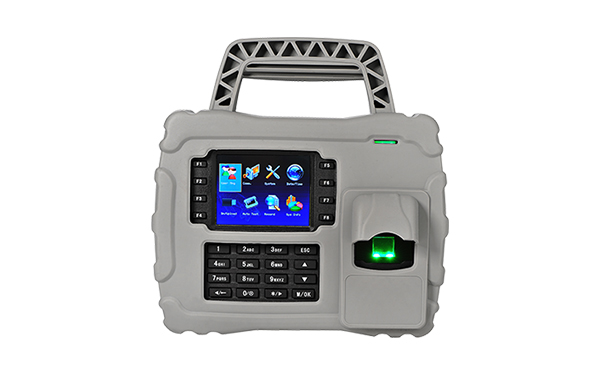

The ZKTeco S922 is a ruggedized, portable fingerprint time and attendance terminal specifically engineered for off-site workforce management in challenging environments such as construction sites, logistics, mining, and agriculture. Housed in an IP65-rated waterproof, dustproof, and rubber-coated shockproof enclosure (durable up to a $0.5\text{m}$ drop), it features a built-in top carrying handle and a large $7,600\text{ mAh}$ backup battery to ensure extended cordless operation in remote field locations. Powered by the ZKFinger V10.0 algorithm on a $3.5\text{-inch}$ TFT screen, the unit supports multi-factor authentication across a high capacity of 50,000 fingerprints and 50,000 ID/IC cards and stores up to 800,000 transaction logs. It offers flexible communication choices—including standard TCP/IP and USB host along with optional Wi-Fi and 3G/4G connectivity—and integrates standard firmware features like ADMS, work codes, photo ID, and automatic status switching.

Display3.5-inch TFT Screen
Fingerprint Capacity50,000
Card Capacity50,000
Transaction Capacity800,000
Fingerprint SensorZK Optical Sensor
Algorithm VersionZKFinger V10.0
CommunicationTCP/IP, USB host; optional with Wi-Fi, 3G (WCDMA) / 4G
Standard FunctionsADMS, Work Code, DST, Self-Service Query, Automatic Status Switch,
T9 Input, Photo-ID, 14-Digit User ID, SMS, ID Card, Backup Battery
Optional FunctionsHID / IC Card
Protection GradeIP65
Power SupplyDC 12V 3A; Built-in Backup 7600 mAh Battery
Operating Temperature0°C – 45°C
Operating Humidity20% – 80%
Net weight1.65 kg
Dimension (HxWxD)225 x 235 x 125 (mm)
