Zkteco SCR100
- Elegant casing design
- Easy installation, safe, and reliable
- Simple and convenient operation method
- ID card standard, Mifare card optional
- Full door lock control system
- Wiegand out to connect with control panel
- Wiegand in to construct master and slave system
- Audio prompts and LED feedback guide the user to operate
- Description
- Specifications
Description

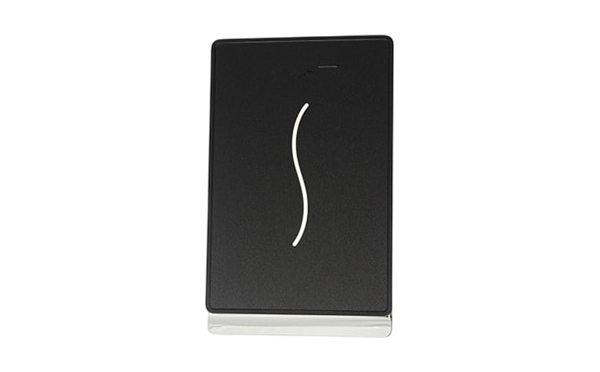

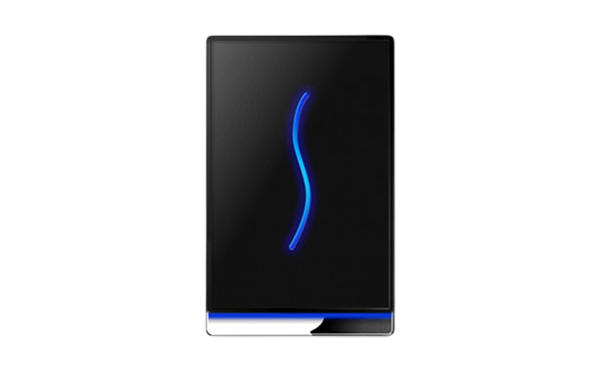

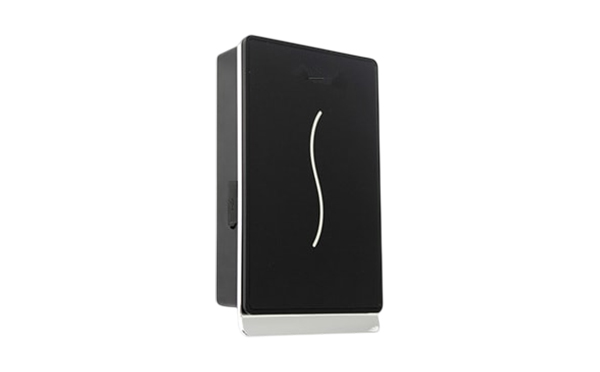

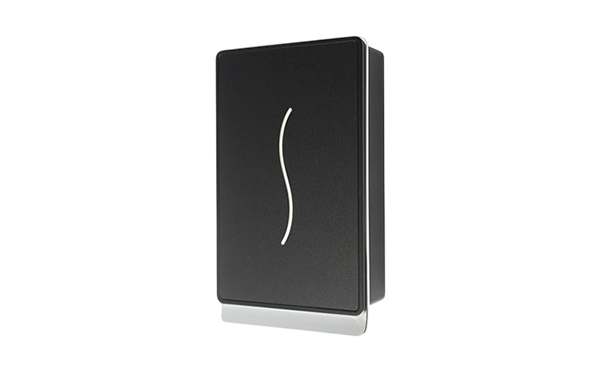

SCR100 is an access control device produced by ZKTeco, which is made with elegant design and professional surface treatment. The device has lock control, alarm, an exit button, and a door sensor. The Wiegand-in interface is used to connect an external reader to construct a master and slave system. Also, the device can be used to connect with a control panel as a reader by the web and out interface. The operation can be done on PC software and uploaded to the device through TCP/IP and RS232/485 communication. The USB host is used for data download and upload, including user data and records, etc. SCR100 is suitable for houses, small offices, factories, etc.
| ID card capacity | 30000 |
|---|---|
| Transaction Capacity | 50000 |
| Communication | TCP/IP, RS232/485, USB-Host |
| Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm, doorbell |
| Wiegand Signal | Output & Input |
| Standard Functions | Anti-passback, Webserver, 9 digital numbers |
| Optional Functions | Mifare |
| Power Supply | 12V DC |
| Operating Temperature | 0°C-45°C |
| Operating Humidity | 20%-80% |
| Dimension (W×H×D) mm | 153×95.5×35.5 |
| Gross Weight | 0.8 kg |
