Zkteco TLEB102 Touchless Exit Button - Image 1
Zkteco TLEB101
Zkteco HB510

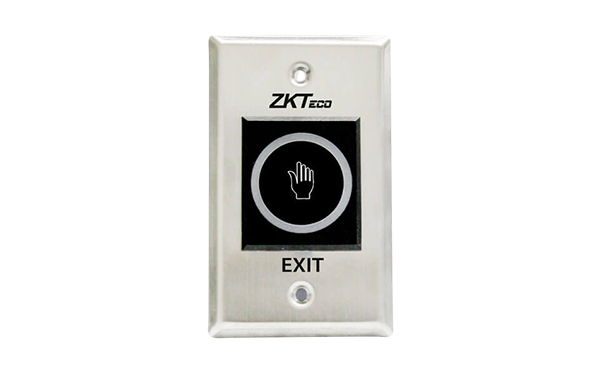

Zkteco TLEB102 Touchless Exit Button

  • Touchless exit button (diffused detection).
  • Optical/infrared technology.
  • IP55 ingress protection/SUS 304 stainless steel plate.
  • Health and safety risks are being mitigated.
  • Detection distance: 10 to 25 cm.
  • Application: Gate/Door/Exit/Automation.
  • High capacity of dry contact relay: 3A/AC120V, DC30V.
  • Two LED indicators representing two button states—standby or approached:
    Button standby: Blue LED ON.
    Visitors approaching the exit button from 10cm: Red LED ON.
Download PDF

Description

Infrared sensor door switch. The exquisite proximity exit button offers an economical application with optimum performance widely used in access control systems in all kinds of industries. Features: detection range 2-10 cm, voltage DC12-14V, rated current 2A, NO/NC/COM output contact, LED indicators, and stainless steel.

Contact rating3A/AC120V, DC30V
Input voltageDC 12V
Working temperature-10°C to 55°C
MCBF100,000
Main materialDurable stainless steel plate
Dimensions (mm)86*86*25 (TLEB101-R)
115*70*25 (TLEB102-R)
Gross weight0.15 kg

Related Products

ZkTeco MB460

1.200 Faces, 1.500 Fingerprints, 100.000 Records and 2.000 Cards (Optional) Multi-languages ...
More Details

ZkTeco MB560 VL

Visible Light Facial Authentication Anti-spoofing algorithm against print attack (laser, color...
More Details

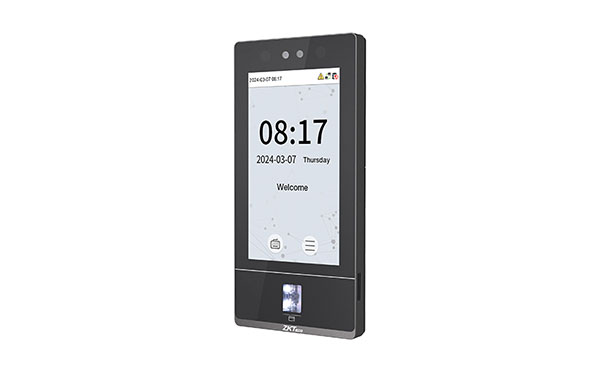

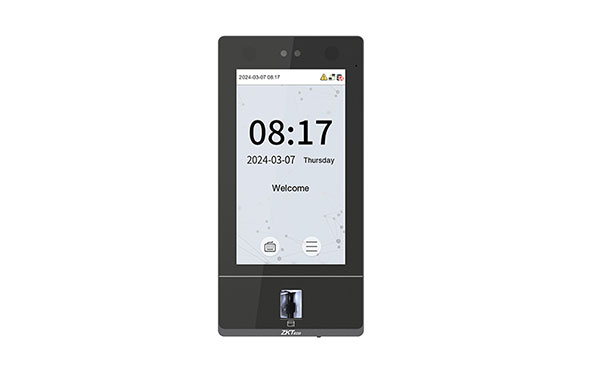

ZkTeco SenseFace 7 Series

Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication Attained IP65...
More Details

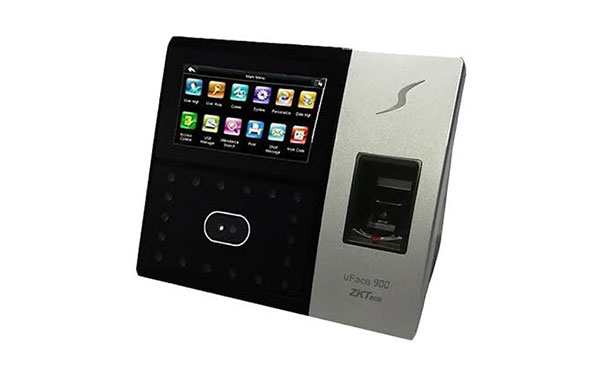

ZkTeco uFace 900
