Zkteco ZKX6040 P3D
- 3D perspective technology providing depth perception and eliminating angular blind spots
- AI computer vision analytics automatically detecting 26 threat categories with over 90% accuracy
- Dual-camera tracking system linking real-time passenger video directly to baggage scans
- 608 mm x 405 mm tunnel opening ideal for screening carry-on luggage and personal items
- High-penetration dual-energy imaging capability capable of screening up to 36mm of steel
- Comprehensive image enhancement including 64x continuous zoom and suspicious organics enhancement
- Built-in security management tools including Threat Image Projection (TIP) and Density Threshold Alert (DTA)
- Operator access security integrated with fingerprint authentication and ZKBio SIS platform support
- Description
- Specifications
Description

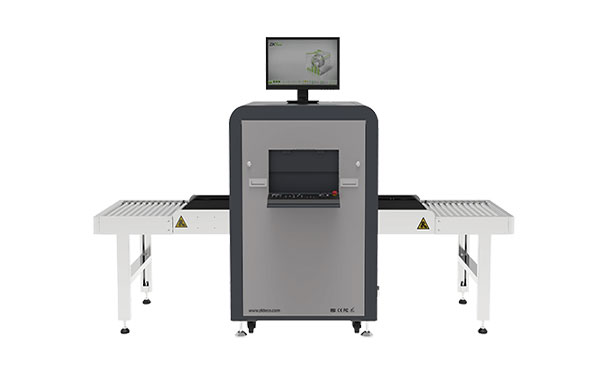

The Zkteco ZKX6040 P3D is an advanced X-ray inspection system featuring innovative 3D perspective technology and computer vision analytics designed for high-efficiency baggage screening. Built with a 608 mm x 405 mm tunnel opening, it uses 3D visualization to eliminate angular blind spots and provide depth perception for carry-on luggage and parcels. Driven by AI computer vision, the system automatically detects 26 classified threat categories with over 90% accuracy while using an integrated dual-camera setup to link scanned items directly with passenger tracking records. Supported by the ZKBio SIS security platform, it combines multi-energy 4-color imaging, suspicious organic enhancement, Threat Image Projection (TIP), and fingerprint authentication to streamline security checkpoints at customs, stadiums, and key venues.
| Tunnell Dimensions (W*H) | 608 x 405 (mm) |
|---|---|
| Conveyor Speed | 0.2m/sec |
| Conveyor Load | 180kg (evenly distributed) |
| Conveyor Height | 680mm |
| Detector | Dual-energy Detector |
| View | Single-view |
| Radiation Leak Dosage | 0.3µ Gy/h (5cm from the surface) |
| Supported Software | ZKBIO SIS |
| Dimension(L*W*H) | 1701mm * 910mm * 1305mm |
| Package Dimensions(L*W*H) | 2200*1200*1450 (mm) |
| Weight | 380kg |
| Package Weight | 480kg |
| Communication Interface | RJ45(TCP/IP) |
| Certifications | CE |
