Zkteco ZKX6040A
- 600 mm x 400 mm tunnel size designed for scanning carry-on luggage and small cargo packages
- Single-energy detector generating clear 4-color pseudo-color images for quick visual identification
- Mobile ergonomic design equipped with entry/exit roller tables and a space-saving foldable keyboard
- Operator access security integrated with fingerprint verification on the console
- Bidirectional conveyor system paired with energy-saving operational modes
- Built-in Threat Image Projection (TIP) and Density Threshold Alert (DTA) functions
- Continuous zoom capability up to 64x alongside dynamic scanning modes
- High-capacity internal storage keeping up to 200,000 scanned images integrated with ZKBio SIS software
- Description
- Specifications
Description
The ZKteco ZKX6040A is a single-energy hassle-free X-ray inspection system featuring a 600 mm x 400 mm tunnel size, specifically designed for screening briefcases, carry-on baggage, and small cargo packages in high-traffic venues such as hotels, shopping malls, and transportation hubs. Built with an ergonomic industrial design, it includes entry and exit roller tables, bidirectional scanning, and a space-saving foldable keyboard equipped with fingerprint verification for enhanced operator security. The system utilizes reliable X-ray generators and advanced image processing algorithms to produce clear pseudo-color scans, supporting energy-saving modes, Threat Image Projection (TIP), Density Threshold Alerts (DTA), and full integration with the ZKBio SIS management platform.
| Tunnel Size (W x H) | 600mm * 400mm |
|---|---|
| Conveyor Speed | 0.30 m/sec |
| Conveyor Load (Max. Load) | 120kg (Adequate distribution) |
| Conveyor Height | 680mm |
| Detector | Single-energy Detector |
| View | Single-view |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45(TCP/IP) |
| Dimension(L*W*H) | 1701mm * 910mm * 1305mm |
| Package Dimensions(L*W*H) | 2110mm * 1140mm * 1540mm |
| Gross Weight (with Package) | 480kg |
| Net Weight | 380kg |
| Film Safety | ASA/ISO1600 |
| Certifications | CE-EMC, CE-MD |
Related Products

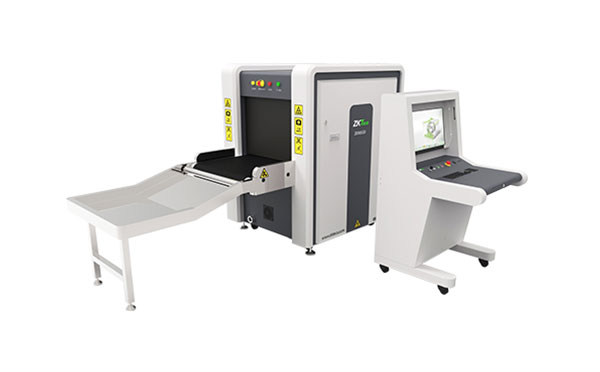

Zkteco ZKX6040 P3D
