Zkteco ZKX6550
- 650 mm x 500 mm tunnel opening designed for scanning luggage, briefcases, and small cargo packages
- Dual-energy detector generating true-color images with organic and inorganic material separation
- Dedicated movable console with a professional keyboard to optimize operator comfort and workflow
- Fingerprint verification built into the console for secure operator authentication
- High penetration power capable of screening through up to 30mm of steel
- Automatic explosive and drug auxiliary alerts paired with Density Threshold Alerts (DTA)
- Integrated Threat Image Projection (TIP) for continuous operator training and evaluation
- High-capacity storage holding up to 200,000 scanned images with ZKBio SIS software compatibility
- Description
- Specifications
Description

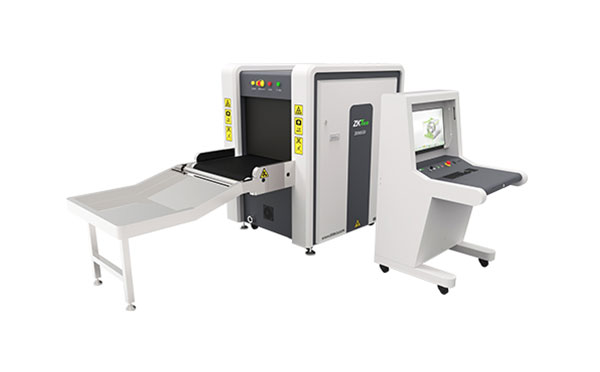

The ZKteco ZKX6550 is a dual-energy X-ray inspection system featuring a 650 mm x 500 mm tunnel size, engineered to screen briefcases, carry-on luggage, and small cargo packages in factories, shopping malls, office buildings, and transportation hubs. It utilizes reliable X-ray generators and advanced image algorithms to produce high-clarity, true-color scanning images with precise organic and inorganic material separation. Built with an ergonomic industrial design, it includes a dedicated movable console equipped with a professional keyboard and fingerprint verification for enhanced operator efficiency and security access control. The system supports bidirectional scanning, energy-saving modes, Threat Image Projection (TIP), explosive/drug auxiliary alerts, continuous 64x zoom, and seamless integration with the ZKBio SIS platform management software.
| Tunnel Size (W x H) | 650mm * 500mm |
|---|---|
| Conveyor Speed | 0.20 m/sec |
| Conveyor Load (Max. Load) | 120kg (Adequate distribution) |
| Conveyor Height | 650mm |
| Detector | Single-energy Detector |
| View | Single-view |
| Supported Software | ZKBio SIS |
| Communication Interface | RJ45(TCP/IP) |
| Dimension(L*W*H) | 2120mm * 980mm *1381mm |
| Package Dimensions(L*W*H) | 2395mm * 1195mm * 1680mm |
| Gross Weight (with Package) | 680kg+140kg (Console) |
| Net Weight | 560kg+100kg (Console) |
| Film Safety | ASA/ISO1600 |
| Certifications | CE-EMC, CE-MD, FCC sDOC, FDA |
| Console Dimensions(L*W*H) | 747mm * 706mm * 1279mm |
| Console Package Dimensions(L*W*H) | 890mm * 840mm * 1502mm |
